NIHON KOHDEN SABAH
AED-3100
The Nihon Kohden AED3100 is a state-of-the-art automated external defibrillator (AED) ideal for use in Sabah’s diverse environments. Compact and user-friendly, it features clear audio and visual prompts to guide users through the defibrillation process. With advanced technology for quick analysis and rapid shock delivery, the AED3100 enhances survival chances in cardiac emergencies. Its durable design and long battery life make it perfect for hospitals, clinics, and public spaces across Sabah.
Always be ready
During daily self-test, AED checks automatically its
condition including battery, pads and failure of circuit.

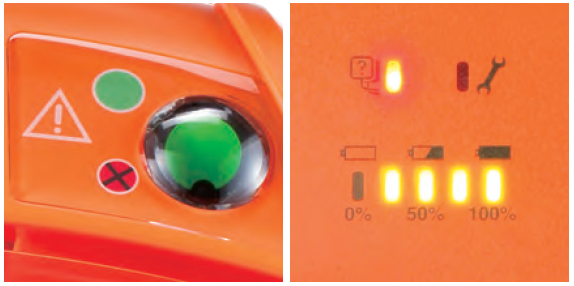

You can see your AED condition with simple status
indicator.
In emergency situation, AED-3100 always be ready to save a life.
In emergency situation, AED-3100 always be ready to save a life.

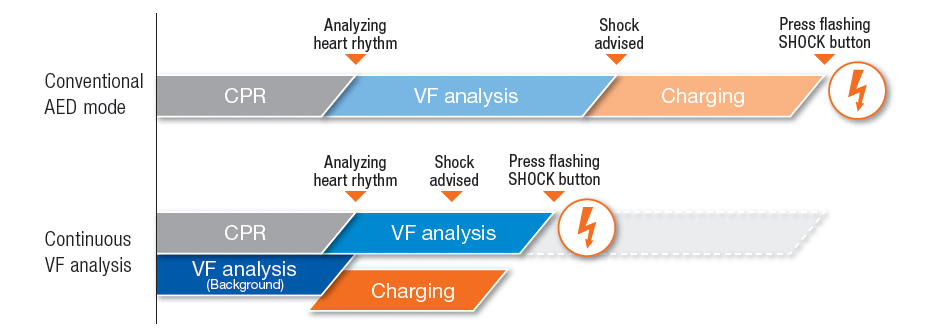

Continuous VF analysis
Continuous VF analysis is available on AED-3100. With this function, the ECG waveform can be analyzed even during
CPR and energy charging starts before the shock is advised. This helps you deliver faster defibrillation than ever before.
Within the reach of anybody
AED should be easy and intuitive to use for anybody. Even if you are not a medical professional,
AED-3100 is ergonomic design for you to use it without doubt and interruption.

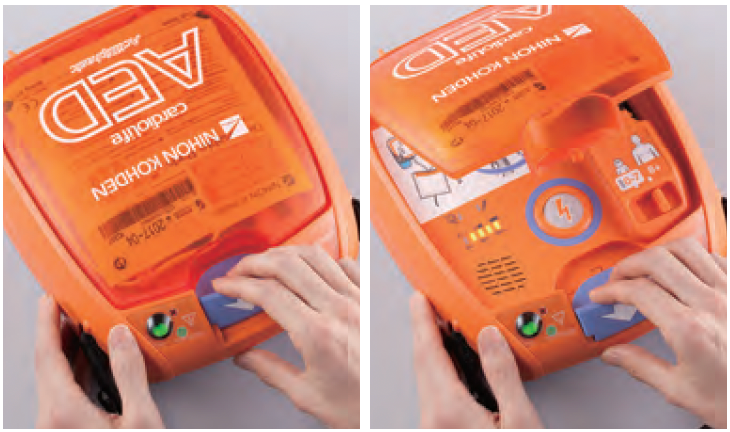

STEP 1 - Open Lid
Open the lid. The voice instruction starts immediately to guide you how to operate AED.

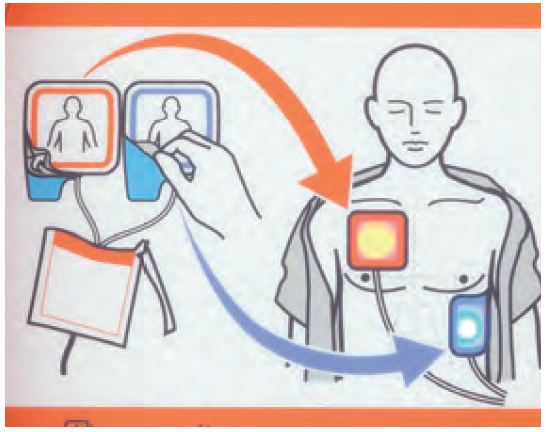

STEP 2 - Attach Pads
After attaching the pads, AED immediately starts to analyze ECG.

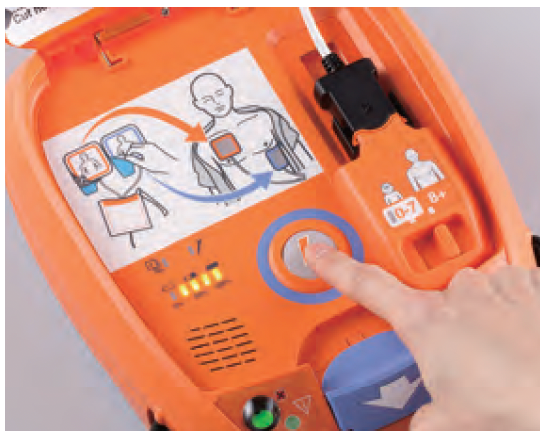

STEP 3 - Push Button
If the shock is needed, push the shock button that is flashing to shock the victim.
Specifications
| Energy | Adult: 150-200-200J Child: 50-70-70J |
| User Interface | Instruction by voice, CPR timing sound 100times / minute Indicator (green/red), shock button, adult/child key |
| Battery | Capacity: 200 discharges or 7.5 hours monitoring |
| Analysis time | Less than 8 seconds, minimum 4.5 seconds |
| From turn on to discharge | Less than 15 seconds (with new battery) |
| Size | 206(W) x 252(D) xz 97(H) |
| Weight | 2.3kg with battery and pads, 1.9kg without battery and pads |
| Standard | Vibration: MIL-STD-810F 514.5C category 4 and category 9, EN1789 Water and dust proof: IP55 |
